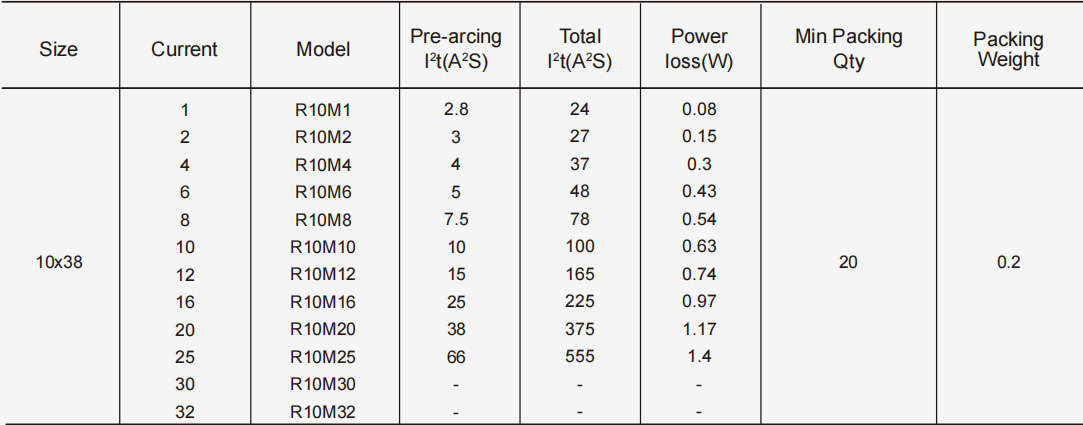

R10M Cylindrical Fuses

This fuse series is designed for electric motor protection with aM characteristic, providing excellent resistance to impulse current during motor startup. It can be equipped with modular base and effectively against short circuits in the motor circuit.

Rated voltage: 500V (gG)

Rated current: 1-32A
